Goldhofer STZ-VL 3 A

Brand

Goldhofer

Model

STZ-VL 3 A

Year

2019

Location

Germany

Gross weight

16,500 kg

Goldhofer STZ-VL 3 (245) A

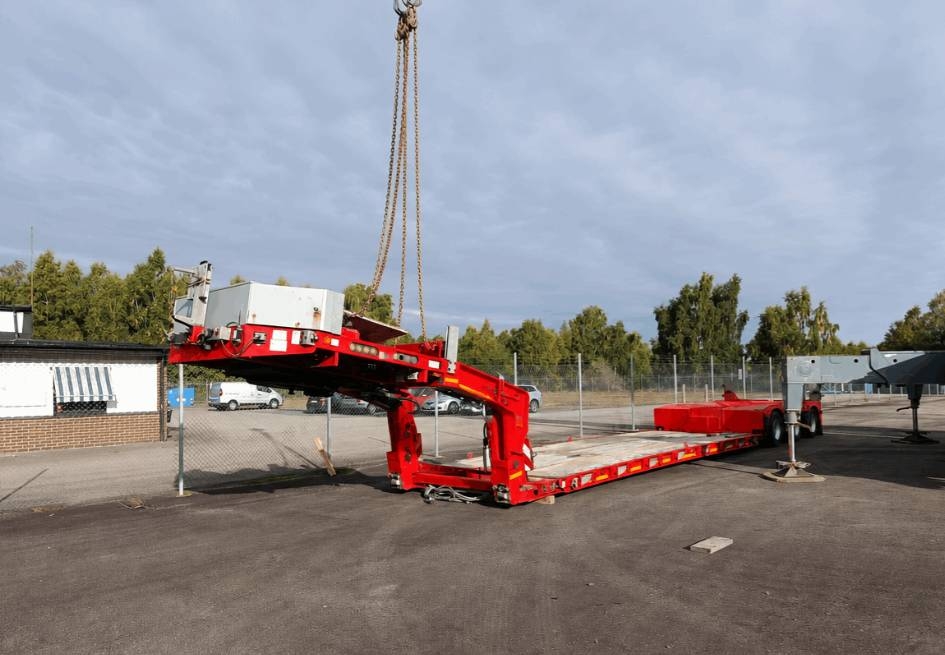

3-axle semi-low-bed trailer with removable gooseneck and external longitudinal beams.
First registered in 2019. Ref. No. 7668.

TECHNICAL SPECIFICATIONS (80 KM/H, 4-AXLE TRACTOR)

Gross vehicle weight: 66,000 kg
Curb weight: approx. 16,500 kg
Payload: approx. 49,500 kg (depending on load distribution plan / easyLOAD)
Fifth-wheel load: 30,000 kg
Axle load: 3 x 12,000 kg
Coupler length: 14,780 mm – total trailer length 20,180 mm
Width: 2,550 mm

GOOSENECK

Removable for front loading, hydraulically liftable/lowerable
Fifth-wheel height 1,300 mm, kingpin 2"
2 hydraulic support cylinders
Goldhofer “Premium” toolbox 550 x 400 x 2,540 mm
Bosch electrohydraulic power unit: 5.5 l/min, 250 bar

LOADING AREA

Single-stage telescoping: 7,600 x 2,550 mm, extendable by 6,050 mm to a maximum of 13,650 mm
Overall height: 220 mm; loaded height: approx. 370 mm
Foldable extensions 2 x 220 mm with larch planks
Softwood flooring, adjustable shelves (3 x 1,500 mm + 1 x 2,000 mm)
Removable loading ramp
Pre-equipped for 40-foot container locks
400 mm aluminum side walls on 3 sides

AXLE ASSEMBLY

3 BPW ECO Max axles with forced steering, wheelbase 1,360 mm
Air suspension, 2 ride heights
Combined excavator/dump body 4,275 x 760/1,180 mm
Tires: Continental 245/70 R17.5 dual tires, 1 full-size spare tire
Drum brakes with EBS and RSS, Wabco SmartBoard

EQUIPMENT

EasyControl Comfort wireless remote control + wired remote control
Bekamax central lubrication system (2 pumps)
LED lighting, work lights, LED rotating beacon
Warning signs with extendable brackets up to 4,000 mm
Lashing points LC 8,000–13,400 daN, stanchion pockets, threaded bushings M30/M36

The trailer is in good technical and optical condition. Ready for operation.

More information on request.
