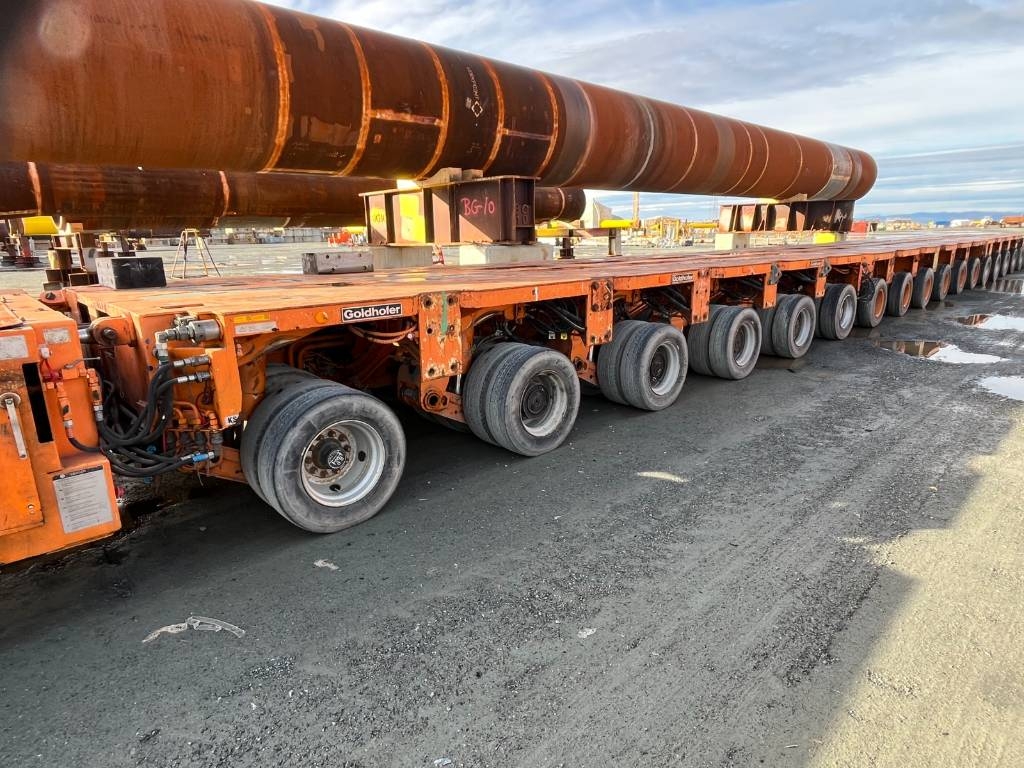

Goldhofer PST/SL 6
Goldhofer PST/ SL 6
Incl. Power Pack: 504 kN tractive force (4 driven axle lines)
Capacity per axle line: 34 ton
Axles: 6 axle lines / 12 pendulum axles (BPW)
Steering; All axles steered, max. 55°
hydr. dual-circuit incl. counter-steering
Drive: 4 driven axle lines – 2 permanent,
2 mech. engageable (free-wheeling)
Tractive force: 504 kN
Axle compensation: Hydraulic, stroke ±300 mm
Platform: 9,000 x 3,000 mm, steel deck
Wheelbase: 1,500 mm
Loading height: 1,175 mm (loaded)
Total weight: 204,000 kg at 5 km/h
Payload: 181,000 kg
Dead weight: 23,000 kg (without accessories)
Tyres: 215/75 R17.5 twin, Michelin
Rims: Silver disc rims, bolt-centred
Brakes: 2-line air brake, spring brake
Paint RAL: 2000 yellow-orange, hubs black

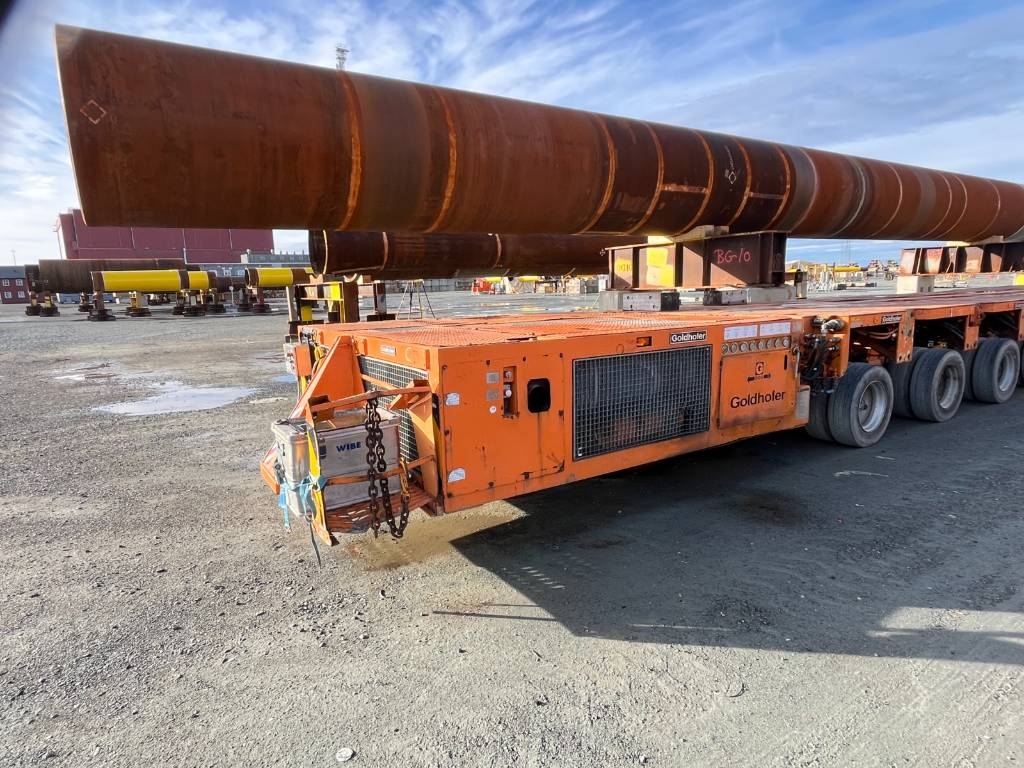

POWERPACK
Type: Goldhofer PFV 430/60-6, without cab
Year: 2005
Engine: MAN D 2876 LUH 02, 430 hp (316 kW)
US emission: standard (EPA)
Drive line: Transfer gearbox, drive pumps,
hydr. pumps for steering + lift/lower
Oil tanks: Separate tanks for hydrostatic drive and for steering/axle compensation
Air system: Compressor for air brake, air dryer
Electronics: 1 set electronics, stage 2
Mounting Couples to THP/SL coupling head, hydr. liftable, removable support legs,
removable auxiliary wheels
Operation Portable remote control, 30 m cable: lift/lower, steering, drive, hydr. + pneumatic brake · plug-in gallows operator stand Open, removable, with seat and holder for remote control
Safety Emergency: remote control, emergency steering bottle
Valves: Proportional valves for PST/SL
Dimensions: 3,300 x 3,000 x 860 mm (LxWxH)
Weight: 6,000 kg
Paint RAL 2000, inside RAL 7004 signal grey
EQUIPMENT AND OPERATION
- Overspeed control on all driven axles
- Hose-burst safety valves
- Hydr. piping for lengthwise + parallel combinations
- 5 pairs of bolt-on lashing eyes
- Fully combinable with Goldhofer THP/SL – single and double width
- Lengthwise combinations PST/SL 6 to PST/SL 12
- Centre unit with THP/SL coupling heads front and rear
- Operating signs in English
In good used condition, ready for use.
Location: Germany
-Detailed information upon request-
