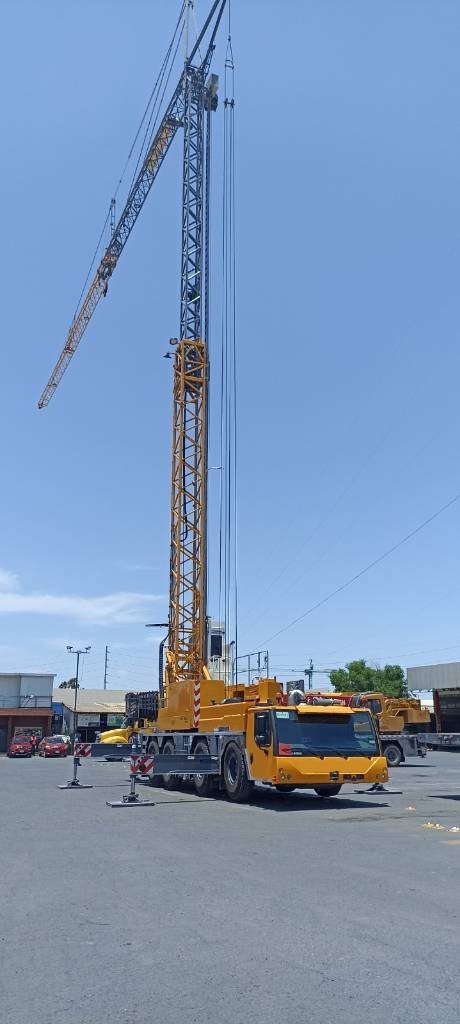

Liebherr MK 88-4.1 Plus
Liebherr Mobile Construction Crane MK 88-4.1
VIN WLFD40CZ2NEZZ0122
Year 2022
S/N 059245
S/N 047421

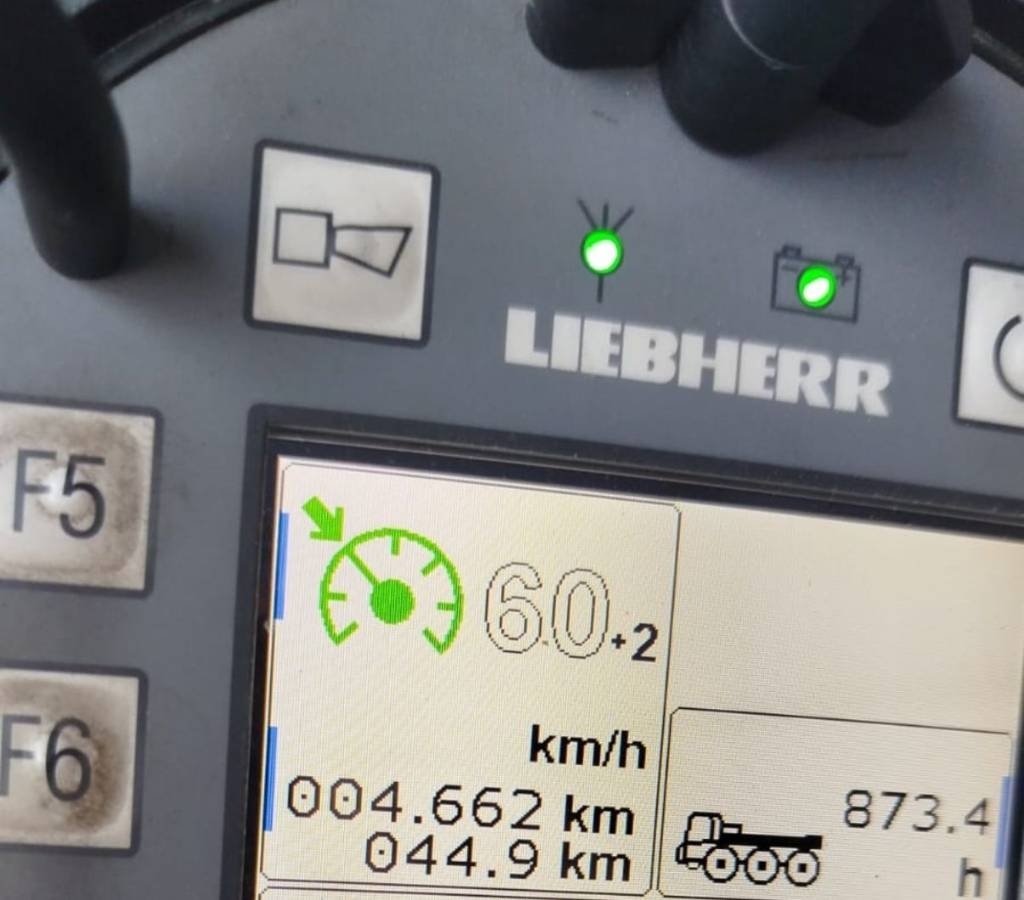

KM: 4.662
Hours: 875
Basic version – 45.0 m radius – hook height horizontal 30.2 m jib including:
crane carrier
Liebherr 4-axle front handlebar chassis; front shunting coupling; set of tools; storage
compartment for strut plates
travel motor
Liebherr in-line 6-cylinder diesel engine, output 330 kW (449 HP); exhaust system with
integrated spark trap; exhaust gas emission in accordance with (EU) 2016/1628 and
EPA/CARB
gear unit automated change-speed gearbox ZF Traxon with intarder, 12 forward and 2 reverse
gears; two-stage distributor gearbox axle drive 8 x 6, axles 2, 3 and 4 driven;
Niveaumatic suspension, suspension travel -100/+100 mm
hydraulic supports
operation via portable control panel with Bluetooth (BTT), automatic levelling, electronic
inclination display, supporting pressure Display
tyre Equipment
8x; 385/95 R25 (14.00 R 25)
driver's cabin
heatable exterior mirrors, main mirror electrically adjustable; electric window regulator;
air-conditioned driver's seat with pneumatic cushioning, lumbar support and seat heater;
height and inclination of steering wheel are steplessly adjustable; air conditioning
equipment; Bluetooth radio; reversing camera; 230 V plug socket; 12 V plug socket;
additional heating independent of engine incl. timer; 6 kg fire extinguisher
Tower
telescoping tower in lattice tower construction, 1-fold telescoping, 1 standard
intermediate hook height 17.9 m
jib
3-part jib in lattice construction; hydraulic jib slewing unit; different jib air assembly
curves; 15°/30°/45°- luffed jib position; equipment for construction site lamp with 5 x
spotlights at tower and jib; switchable aircraft-warning system, flashing light or constant
light
Liebherr telematics unit (pre-installed hardware) for optional LiDAT functionality,
compatible with mobile phone standards 2G/3G/4G as an American variant (North and
South America)
- Radio control with display
- Trolley Plus: Additional load curves in 15° and 45° steep angle position
- Hoist gear 24.0 kW
- Diesel power unit with spark trap and overspeed protection incl. engine cutout
- Small control desk with 1.77" colour display and two-stage push-buttons, including 10 m
CONTROL CABLE – FOR EMERGENCY OPERATION ONLY
- Preparation for passenger transport emergency mode in switch cabinet S1
- Camera system for inspection of the slewing gear
- Air conditioning of switch box
- Fuel pump for decanting diesel fuel
- 32 A power supply
- LED illumination on tower and in jib
Load plus. Additional load capacity increase with additional load curve LM3. Speed of
drive units is reduced. Simultaneous movement of drive units is not possible. Load
capacity at the tip without additional ballast approx. 2.000 kg, with additional ballast (2
to) approx. 2.200 kg
– Additional optical and acoustic signal for overload mounted at the lift cabin
CRANE CARRIER
- Tool carrier can be hydraulically lifted and lowered at the rear of the crane
- Rear shunting coupling
- Engine stop carrier with emergency stop
- Engine D936 A7; acc. to emission standards regarding directive EU 2016/1628 – Stufe V
Condition: full working and operational
Location: Mexico
Available at short notice.
-Further information on request-
